Scripting in Legacy Web Builder

Zapier’s Legacy Web Builder scripting lets you to manipulate the requests and responses that are exchanged between your app’s API and Zapier Legacy Web Builder Integrations. You can use this scripting inside existing integrations in Zapier’s Legacy Web Builder, or in the Scripting.js section of your integration’s Advanced settings in the newer Zapier Platform UI if your integration has been imported to the newer visual builder.

You can modify HTTP requests just before they are sent and can parse responses before Zapier does anything with them. This enables you to do things like:

Set unique HTTP Headers
Modify the request URL based on user’s input criteria.
Construct unique URL query strings like filters.
Turn XML or other serialization formats into properly formatted JSON primitives.
Create completely new keys on JSON objects for user consumption (like turning 1000 into $10.00).

Scripting works by giving you places to add your own code to the request-response cycle. To add a method to an integration in Zapier’s Legacy Web Builder, click the edit code button on your App’s developer dashboard:

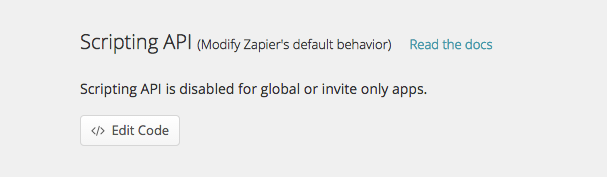

Edit Code button

Alternately, if you’ve already imported your integration to the new Zapier Platform UI, click the Advanced tab, select Legacy Web Builder, and add your custom code to the editor there:

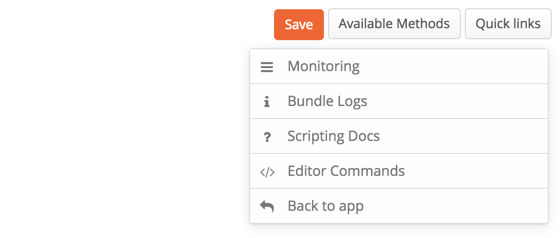

Platform UI code editor

Inside the editor, you will create the root module Zap. By default it is a blank JavaScript object. You add to it by defining one or more of the available methods. Each method accepts a single variable called bundle, which is a JSON serializable object. The content of the bundle varies depending on the method you are implementing. The output of your method must also be a serializable object.

Below is an example of implementing a method to be a pass-through:

var Zap = {
my_trigger_pre_poll: function(bundle) {
// your code to modify bundle.request before sent
return bundle.request;
}
}

Note: All code written in the Scripting API must adhere to strict mode, which is a subset of Javascript. Any issues with your code that violate this will now be shown in the Scripting API editor with red X marks in the sidebar. The code will run in Node.js 4.3.2.

Limits and Considerations

Scripting is powerful, but not unlimitedly so.

When writing your code, make it lean and run fast.

Some hard limits are that each method needs to run in under 30 seconds, and it won’t process request/response payloads larger than ~5 MB.

Available Methods

There are a variety of methods for manipulating requests Zapier makes to your API. Below is the complete list of methods you can use in scripting. You may provide any, all, or none of these methods.

Trigger Methods

Many of the trigger methods follow a naming pattern of key + method name, where key is the key given to the trigger when you created it. Below, we use the convention of KEY as the placeholder for the trigger’s actual key. For example, if you define a trigger with the key “my_trigger” and you want to implement the pre_poll method, you would write a method called my_trigger_pre_poll.

Polling

`KEY_pre_poll`

Runs before the request to the polling URL, can modify the request before it is sent.

var Zap = {
KEY_pre_poll: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap
      bundle.meta: <object> # extra runtime information you can use

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_poll`

Runs after we receive a response from the polling URL. Can parse the response to format the data that enters Zapier or throw an exception. We will throw for status codes 4xx and 5xx after the method runs automatically.

var Zap = {
KEY_post_poll: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from KEY_pre_poll bundle>

      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap
      bundle.meta: <object> # extra runtime information you can use

    The response should be JSON serializable:
      [
        <object>, # with unique 'id' key
        <object> # with unique 'id' key
      ]
    */
    return [];

}
}

`KEY_poll`

Runs in place of pre_poll and post_poll. You get a bundle and are expected to make the request and return a list of results or throw an exception. We will not throw for status codes like 4xx and 5xx automatically!

var Zap = {
KEY_poll: function(bundle) {
/\*
Arguments:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap
      bundle.meta: <object> # extra runtime information you can use

      If you include a callback in the arguments, you can also perform async:
        callback(err, response)

    You are expected to make the request yourself. The response should be JSON serializable:
      [
        <object>, # with unique 'id' key
        <object> # with unique 'id' key
      ]
    */
    return []; // or callback(null, [])

}
}

See bundle.request.

Static and REST Hooks

`KEY_catch_hook`

Runs when we receive a static or subscription hook from your API. Can parse the response to format the data that enters Zapier.

var Zap = {
KEY_catch_hook: function(bundle) {
/\*
Argument:
bundle.request.method: <str> # 'GET', 'POST', 'PATCH', 'PUT', 'DELETE'
bundle.request.headers: <object>
bundle.request.querystring: <str> # parse with \$.param(bundle.request.querystring)
bundle.request.content: <str>

      bundle.cleaned_request: <object> or <array> # our best guess at parsing
                                                  # and combining the request
                                                  # (including handling JSON & XML).
      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap

    The response should be either a JSON serializable array...
      [
        <object>,
        <object>
      ]

    ...or a single object:
      <object>
    */
    return []; // or {}

}
}

REST Hooks and Notification REST Hooks

`pre_subscribe`

Runs before we subscribe.

var Zap = {
pre_subscribe: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "POST"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>
bundle.request.data: <string>

      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the data from trigger fields
      bundle.target_url: <string> # our unique Zapier url for this subscription
      bundle.event: <string> # the event being subscribed to
      bundle.zap: <object> # info about the zap

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`post_subscribe`

Runs after we subscribe. It is exclusively for storing results that are needed later for pre_unsubscribe.

var Zap = {
post_subscribe: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from pre_subscribe bundle>

      bundle.target_url: <string> # our unique Zapier url for this subscription
      bundle.event: <string> # the event (if any) that was subscribed to
      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the data from trigger fields
      bundle.zap: <object> # info about the zap

    The response should be JSON serializable, you'll have access to it as
    subscribe_data in the unsubscribe call. Normally you'd store some state
    about the hook resource you created, for example, some apps need
    an ID to locate and unsubscribe from a hook.

    */
    return ""; // or {}, or []

}
}

`pre_unsubscribe`

Runs before we unsubscribe.

var Zap = {
pre_unsubscribe: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "POST"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>
bundle.request.data: <string>

      bundle.target_url: <string> # our unique Zapier url for this subscription
      bundle.subscribe_data <json> # any data you returned from post_subscribe
      bundle.event: <string> # the event (if any) being unsubscribed from
      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the data from trigger fields
      bundle.zap: <object> # info about the zap

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

Notification REST Hooks

`KEY_pre_hook`

Runs before the consuming call.

var Zap = {
KEY_pre_hook: function(bundle) {
/\*
Argument:
bundle.request.method: <string>
bundle.request.headers: <object>
bundle.request.querystring: <string> # parse using \$.param(bundle.request.querystring)
bundle.request.content: <string>

      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_hook`

Runs after we receive a response from the consuming call. Can parse the response to format the data that enters Zapier or throw an exception. We will throw for status codes 4xx and 5xx after the method runs automatically.

var Zap = {
KEY_post_hook: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from KEY_pre_hook bundle>

      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap

    The response should be JSON serializable:
      [
        <object>,
        <object>
      ]
    */
    return [];

}
}

Available to all triggers

`KEY_pre_custom_trigger_fields`

Runs before the request to the custom field URL (if provided).

var Zap = {
KEY_pre_custom_trigger_fields: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_custom_trigger_fields`

Runs after the response for custom fields is received. Can parse the response to format the data that enters Zapier or throw an exception. We will throw for status codes 4xx and 5xx after the method runs automatically.

var Zap = {
KEY_post_custom_trigger_fields: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from KEY_pre_hook bundle>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.trigger_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap

    The response should be JSON serializable:
      [
        # `type` can be unicode, int, bool
        # `key` should be unique and match a key found in the JSON representation we receive from your API
        # `label` is a human-readable name we can give this field in the UI
        {'type': <str>, 'key': <str>, 'label': <str>}
      ]
    */
    return [];

}
}

Action Methods

Action methods follow a naming pattern of key + method name, where key is the key given to the action when you created it. Below, we use the convention of KEY as the placeholder for the action’s actual key. For example, if you define an action with the key “my_action” and you want to implement the pre_write method, you would write a method called my_action_pre_write.

`KEY_pre_write`

Runs before the request to the action URL, can modify the request before it is sent.

var Zap = {
KEY_pre_write: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "POST"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>
bundle.request.data: <string>
bundle.request.files: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.action_fields: <object> # pruned and replaced users' fields
      bundle.action_fields_full: <object> # all replaced users' fields
      bundle.action_fields_raw: <object> # before we replace users' variables
      bundle.zap: <object> # info about the zap

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_write`

Runs after we receive a response from the action endpoint, can modify the response or throw an exception. We will throw for status codes 4xx and 5xx after the method runs automatically. Note: If the action occurs as part of a search-or-create Zap, the output of this method is not exactly what the user sees. In that case, the action will be followed up with a request to fetch the written record, and we will present the user with the output from that follow-up request. If you need to modify the returned data in that scenario, use _post_read_resource.

var Zap = {
KEY_post_write: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from KEY_pre_write bundle>

      bundle.auth_fields: <object>
      bundle.action_fields: <object> # pruned and replaced users' fields
      bundle.action_fields_full: <object> # all replaced users' fields
      bundle.action_fields_raw: <object> # before we replace users' variables
      bundle.zap: <object> # info about the zap

    The response will be used to give the user more fields to use
    in the next step of the Zap.  Please return a JSON serializable object.

    return <object>;
    */

}
}

`KEY_write`

Runs in place of pre_write and post_write. You get a bundle and are expected to make the request and return the appropriate response or throw an exception. We will not throw for status codes like 4xx and 5xx automatically! Note: If the action occurs as part of a search-or-create Zap, the output of this method is not exactly what the user sees. In that case, the action will be followed up with a request to fetch the written record, and we will present the user with the output from that follow-up request. If you need to modify the returned data in that scenario, use _post_read_resource.

var Zap = {
KEY_write: function(bundle, [callback]) {
/\*
Arguments:

      bundle.request.method: <string> # "POST"
      bundle.request.url: <string>
      bundle.request.auth: <array>
      bundle.request.headers: <object>
      bundle.request.params: <object>
      bundle.request.data: <string>
      bundle.request.files: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.action_fields: <object> # pruned and replaced users' fields
      bundle.action_fields_full: <object> # all replaced users' fields
      bundle.action_fields_raw: <object> # before we replace users' variables
      bundle.zap: <object> # info about the zap

    If you include a callback in the arguments, you can also perform async:
      callback(err, response)

    The response will be used to give the user more fields to use
    in the next step of the Zap.  Please return a JSON serializable object.

    return <object>;
    */
    // your code to modify bundle.request before sent
    var response = z.request(bundle.request);
    return z.JSON.parse(response.content);

}
}

See bundle.request.

`KEY_pre_custom_action_fields`

Runs before the request to the custom field URL (if provided).

var Zap = {
KEY_pre_custom_action_fields: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.action_fields: <object> # the raw action fields (if applicable)
      bundle.zap: <object> # info about the zap (details below)

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_custom_action_fields`

var Zap = {
KEY_post_custom_action_fields: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from KEY_pre_custom_action_fields bundle>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.action_fields: <object> # the fields provided by the user during setup
      bundle.zap: <object> # info about the zap

    The response should be JSON serializable:
      [
        # `type` can be unicode, int, bool
        # `key` should be unique, and will be the "key" in "key: value" in the POST
        # `help_text` and `label` are also available
        {'type': <str>, 'key': <str>}
      ]
    */
    return []; // return fields in the order you want them displayed in the UI. They'll be appended after the regular action fields

}
}

`KEY_custom_action_fields`

Allows you to completely take over the handling of retrieving and processing field metadata for custom action fields. Pre- and Post- methods will not be called if you’ve implemented this method. This method will be passed a bundle and must return an array of custom field metadata. If a request to an endpoint fails, you will need to throw an exception - the platform will not do it automatically.

var Zap = {KEY_custom_action_fields: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # GET
bundle.request.url: <string> # ""
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

        bundle.url_raw: <string> # ""
        bundle.auth_fields: <object>
        bundle.action_fields: <object> # the raw action fields (if applicable)
        bundle.zap: <object> # info about the zap

    The response should be JSON serializable:
        [

            # "type": "unicode",
            # "key": "json_key", // the field "name", will be used to construct a label if none is provided
            # "required": false, // whether this field must be filled out. defaults to true
            # "label": "Pretty Label", // optional
            # "help_text": "Helps to explain things to users.", // optional
            # "choices": { // optional
                "raw": "label"
            } // can also be a flat array if raw is the label
            {'type': <str>, 'key': <str>}

         ]
       */
       return []; // return fields in the order you want them displayed in the UI. They'll be appended after the regular action fields
    }

}

See bundle.request.

`KEY_custom_action_result_fields`

Allows you to completely take over the handling of retrieving and processing field metadata for custom fields when users are working with results of your action in the Zap editor. Pre- and Post- methods will not be called if you’ve implemented this method. This method will be passed a bundle and must return an array of custom field metadata. If a request to an endpoint fails, you will need to throw an exception - the platform will not do it automatically.

var Zap = {KEY_custom_action_result_fields: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

        bundle.request: <original object from KEY_pre_custom_action_fields bundle>

        bundle.url_raw: <string>
        bundle.auth_fields: <object>
        bundle.action_fields: <object> # the raw action fields (if applicable)
        bundle.zap: <object> # info about the zap

    The response should be JSON serializable:
        [
            # `type` can be unicode, int, bool
            # `key` should be unique, and will be the "key" in "key: value" in the response content
            # `label` is also available
            {'type': <str>, 'key': <str>, 'label': <str>}
        ]
       */
       return []; // return fields in the order you want them displayed in the UI. They'll be appended after the regular action fields
    }

}

`KEY_pre_custom_action_result_fields`

Runs before the request to the custom response fields URL (if provided).

var Zap = {
KEY_pre_custom_action_result_fields: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

        bundle.url_raw: <string>
        bundle.auth_fields: <object>
        bundle.action_fields: <object> # the raw action fields (if applicable)
        bundle.zap: <object> # info about the zap (details below)

    The response should be bundle.request or a similar object
    */
    return {
        url: bundle.request.url,
        method: bundle.request.method,
        auth: bundle.request.auth,
        headers: bundle.request.headers,
        params: bundle.request.params,
        data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_custom_action_result_fields`

Runs after the response for custom response fields is received. Can parse the response to format the data that enters Zapier or throw an exception exception. We will throw for status codes 4xx and 5xx after the method runs automatically.

var Zap = {
KEY_post_custom_action_result_fields: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

        bundle.request: <original object from KEY_pre_custom_action_fields bundle>

        bundle.url_raw: <string>
        bundle.auth_fields: <object>
        bundle.action_fields: <object> # the raw action fields (if applicable)
        bundle.zap: <object> # info about the zap
    The response should be JSON serializable:
        [
            # `type` can be unicode, int, bool
            # `key` should be unique, and will be the "key" in "key: value" in the response content
            # `label` is also available
            {'type': <str>, 'key': <str>, 'label': <str>}
        ]
    */
        return []; // return fields in the order you want them displayed in the UI. They'll be appended after the regular action fields
    }

}

Search Methods

Search methods follow a naming pattern of key + method name, where key is the key given to the search when you created it. Below, we use the convention of KEY as the placeholder for the search’s actual key. For example, if you define an search with the key “my_search” and you want to implement the pre_search method, you would write a method called my_search_pre_search.

`KEY_pre_search`

Runs before the request to the search URL, can modify the request before it is sent.

var Zap = {
KEY_pre_search: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.search_fields: <object> # pruned and replaced users' fields
      bundle.zap: <object> # info about the zap

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_search`

Runs after we receive a response from the search endpoint, can modify the response or throw an exception. We will throw for status codes 4xx and 5xx after the method runs automatically. Note: The output of the method is not exactly what the user sees. We follow searches up with requests for the individual resources and present the user with the output from those follow-up requests. If you wish to modify the number (or ordering) of the search results, use _post_search. If you wish to modify the data the user sees, use _post_read_resource. One other thing to be aware of is that searches must return an array of objects, so if your search endpoint returns a single object, you can use this method to wrap your object in an array.

var Zap = {
KEY_post_search: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from KEY_pre_search bundle>

      bundle.auth_fields: <object>
      bundle.search_fields: <object> # pruned and replaced users' fields
      bundle.zap: <object> # info about the zap

    The response is an array, which may contain zero or more matches.

    If multiple matches are found, sort the array with the "best match" first.

    Use the available exceptions to vary errors.
    */
    return [ ]; // no matches
    /* --- or --- */
    return [ { ... } ];  // return a single match
    /* --- or --- */
    return [ { ... }, { ... }, ... ]; // several matches, with "best match" first

}
}

`KEY_search`

Runs in place of pre_search and post_search. You get a bundle and are expected to make the request and return the appropriate response or throw an exception. We will not throw for status codes like 4xx and 5xx automatically! Note: The output of the method is not exactly what the user sees. We follow searches up with requests for the individual resources and present the user with the output from those follow-up requests. If you wish to modify the number (or ordering) of the search results, you can do that inside _search. If you wish to modify the data the user sees, use _post_read_resource.

var Zap = {
KEY_search: function(bundle, [callback]) {
/\*
Arguments:

      bundle.request.method: <string> # "GET"
      bundle.request.url: <string>
      bundle.request.auth: <array>
      bundle.request.headers: <object>
      bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.search_fields: <object> # pruned and replaced users' fields

      bundle.zap: <object> # info about the zap

    If you include a callback in the arguments, you can also perform async:
      callback(err, response)

    The response will be used to give the user more fields to use
    in the next step of the Zap.  Please return a JSON serializable object.
    */

    return {...}; // or callback(null, {...})

}
}

See bundle.request.

`KEY_pre_custom_search_fields`

Runs before the request to the custom field URL (if provided).

var Zap = {
KEY_pre_custom_search_fields: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.search_fields: <object> # the raw search fields (if applicable)

      bundle.zap: <object> # info about the zap (details below)

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_custom_search_fields`

var Zap = {
KEY_post_custom_search_fields: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from KEY_pre_custom_search_fields bundle>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.zap: <object> # info about the zap

    The response should be JSON serializable:
      [
        # `type` can be unicode, int, bool
        # `key` should be unique, and will be the "key" in "key: value" in the POST
        # `help_text` and `label` are also available
        {'type': <str>, 'key': <str>}
      ]
    */
    return []; // return fields in the order you want them displayed in the UI. They'll be appended after the regular search fields

}
}

`KEY_custom_search_fields`

Allows you to completely take over the handling of retrieving and processing field metadata for custom search action fields. Pre- and Post- methods will not be called if you’ve implemented this method. This method will be passed a bundle and must return an array of custom field metadata. If a request to an endpoint fails, you will need to throw an exception - the platform will not do it automatically.

var Zap = {KEY_custom_search_fields: function(bundle)
{
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

      bundle.auth_fields: <object>
      bundle.zap: <object> # info about the zap
    The response should be JSON serializable:
    [
      # `type` can be unicode, int, bool
      # `key` should be unique, and will be the "key" in "key: value" in the POST
      # `help_text` and `label` are also available
      {'type': <str>, 'key': <str>}
    ]
    */

return []; // return fields in the order you want them displayed in the UI. They'll be appended after the regular search fields
}
}

See bundle.request.

`KEY_custom_search_result_fields`

Allows you to completely take over the handling of retrieving and processing field metadata for custom fields when users are working with results of your search action in the Zap editor. Pre- and Post- methods will not be called if you’ve implemented this method. This method will be passed a bundle and must return an array of custom field metadata. If a request to an endpoint fails, you will need to throw an exception - the platform will not do it automatically.

var Zap = {
KEY_custom_search_result_fields: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

            bundle.request: <original object from KEY_pre_custom_search_fields bundle>

            bundle.url_raw: <string>
            bundle.auth_fields: <object>
            bundle.zap: <object> # info about the zap
       The response should be JSON serializable:
           [
               # `type` can be unicode, int, bool
               # `key` should be unique, and will be the "key" in "key: value" in the response content
               # `label` should be provided
               {'type': <str>, 'key': <str>, 'label': <str>}
           ]
        */
        return []; // return fields in the order you want them displayed in the UI. They'll be appended after the regular search fields
    }

}

`KEY_pre_custom_search_result_fields`

Runs before the request to the custom search result field URL (if provided)

var Zap = {
KEY_pre_custom_search_result_fields: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

        bundle.url_raw: <string>
        bundle.auth_fields: <object>
        bundle.search_fields: <object> # the raw search fields (if applicable)
        bundle.zap: <object> # info about the zap (details below)

    The response should be bundle.request or a similar object
    */
        return {
            url: bundle.request.url,
            method: bundle.request.method,
            auth: bundle.request.auth,
            headers: bundle.request.headers,
            params: bundle.request.params,
            data: bundle.request.data
        }; // or return bundle.request;
    }

}

See bundle.request.

`KEY_post_custom_result_search_fields`

Runs after the response for custom search result fields is received. Can parse the response to format the data that enters Zapier or throw an exception. We will throw for status codes 4xx and 5xx after the method runs automatically.

var Zap = {
KEY_post_custom_search_result_fields: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

        bundle.request: <original object from KEY_pre_custom_search_fields bundle>

        bundle.url_raw: <string>
        bundle.auth_fields: <object>
        bundle.zap: <object> # info about the zap
    The response should be JSON serializable:
           [
               # `type` can be unicode, int, bool
               # `key` should be unique, and will be the "key" in "key: value" in the response content
               # `label` should be provided
               {'type': <str>, 'key': <str>, 'label': <str>}
           ]
    */
        return []; // return fields in the order you want them displayed in the UI. They'll be appended after the regular search fields
    }

}

`KEY_pre_read_resource`

Runs before we do the request to read an individual resource. Use to modify the request before it is sent.

var Zap = {
KEY_pre_read_resource: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "GET"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.read_fields: <object> # the response data from the search (or the write in case of search-or-create)
      bundle.read_context: <object> # the original params passed into the search (or the write in case of search-or-write)
      bundle.zap: <object> # info about the zap (details below)

    The response should be bundle.request or a similar object
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      auth: bundle.request.auth,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`KEY_post_read_resource`

Runs after we do the request to read an individual resource. Use to modify the data returned or throw an exception. We will throw for status codes 4xx and 5xx after the method runs automatically.

var Zap = {
KEY_post_read_resource: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.request: <original object from KEY_pre_read_resource bundle>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.read_fields: <object> # the response data from the search (or the write in case of search-or-create)
      bundle.read_context: <object> # the original params passed into the search (or the write in case of search-or-write)

      bundle.zap: <object> # info about the zap

    The response will be used to give the user more fields to use
    in the next step of the Zap.  Please return a JSON serializable object.

    return <object>;
    */
    return {...};

}
}

`KEY_read_resource`

Runs in place of pre_read_resource and post_read_resource. You get a bundle and are expected to make the request and return the appropriate response or throw an exception. We will not throw for status codes like 4xx and 5xx automatically!

var Zap = {
KEY_read_resource: function(bundle, [callback]) {
/\*
Arguments:

      bundle.request.method: <string> # "GET"
      bundle.request.url: <string>
      bundle.request.auth: <array>
      bundle.request.headers: <object>
      bundle.request.params: <object>

      bundle.url_raw: <string>
      bundle.auth_fields: <object>
      bundle.read_fields: <object> # the response data from the search (or the write in case of search-or-create)
      bundle.read_context: <object> # the original params passed into the search (or the write in case of search-or-write)

      bundle.zap: <object> # info about the zap

    If you include a callback in the arguments, you can also perform async:
      callback(err, response)

      The response should be an object representing the resource. Can also use the available exceptions to vary errors.
    */
    return {...}; // or callback(null, {...})

}
}

See bundle.request.

Authentication Methods

`pre_oauthv2_token`

Modify the request we’d send to the access token endpoint.

var Zap = {
pre_oauthv2_token: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "POST"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object> # {"Accept": "application/json", "Content-Length": 0}
bundle.request.params: <object> client_id, client_secret, redirect_uri, grant_type:authorization_code, code

      bundle.load: <object> # identical to bundle.request.params
      bundle.oauth_data: <object> # obj that contains your client_id, client_secret, etc...
      bundle.zap: <object> # info about the zap

    The response should be an object of:
      url: <string>
      method: <string> # 'GET', 'POST', 'PATCH', 'PUT', 'DELETE'
      headers: <object>
      params: <object> # this will be mapped into the query string
      data: <string> or null # request body: optional if POST, not needed if GET
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`post_oauthv2_token`

Modify the response from the access token endpoint or throw an exception. We will throw for status codes 4xx and 5xx before the method runs automatically.

var Zap = {
post_oauthv2_token: function(bundle) {
/\*
Argument:
bundle.response.status_code: <integer>
bundle.response.headers: <object>
bundle.response.content: <str>

      bundle.oauth_data: <object> # client id/secret and oauth related URLs
      bundle.auth_fields: <object>
    */
    // If you have defined extra fields besides access_token
    // and refresh_token in the Extra Requested Fields setup,
    // you may return them here as well.
    return z.JSON.parse(bundle.response.content);

}
}

`pre_oauthv2_refresh`

Modify the request we’d send to the refresh token endpoint. Only use if you have set the auth type for your App to be OAuth V2 with Refresh.

var Zap = {
pre_oauthv2_refresh: function(bundle) {
/\*
Argument:
bundle.request.method: <string> # "POST"
bundle.request.url: <string>
bundle.request.auth: <array>
bundle.request.headers: <object>
bundle.request.data: <object> # client_id, client_secret, refresh_token, grant_type

      bundle.load: <object> # same as bundle.request.data
      bundle.auth_fields: <object>
      bundle.oauth_data: <object> # obj that contains your client_id, client_secret, etc...
      bundle.zap: <object> # info about the zap

    The response should be an object of:
      url: <string>
      method: <string> # 'GET', 'POST', 'PATCH', 'PUT', 'DELETE'
      headers: <object>
      params: <object> # this will be mapped into the query string
      data: <string> or null # request body: optional if POST, not needed if GET
    */
    return {
      url: bundle.request.url,
      method: bundle.request.method,
      headers: bundle.request.headers,
      params: bundle.request.params,
      data: bundle.request.data
    }; // or return bundle.request;

}
}

See bundle.request.

`get_session_info`

Zapier exposes a get_session_info() function for APIs that require any form of session-based authorization. Feel free to use the following skeleton function to inspire your session authorization:

Zap = {
get_session_info: function(bundle) {
/_
Argument:
bundle.auth_fields: <object>
bundle.zap: <object> # info about the zap
_/

    // Make z.request calls as needed.

    // Returned object will be mixed into bundle.auth_fields in future calls.
    return {'api_key': api_key};

}
};

`get_connection_label`

Zapier exposes a get_connection_label() function for APIs that need customization on their Connection Label:

Zap = {
get_connection_label: function(bundle) {
/_
Argument:
bundle.test_result: <object> # results from the test trigger, if it returned an object
bundle.auth_fields: <object>
bundle.zap: <object> # info about the zap
_/

// Make z.request calls as needed.

    // Returned string will be used as a Connection Label.
    // Please note it should be short and easily identifiable
    return 'partners@zapier.com';

}
};

Built-in Functions and Tools

Available Libraries

Our scripting engine uses JavaScript. As you’d expect, it provides the standard JavaScript interfaces (JSON, Math, Date and more) as well as $ for jQuery (1.8.3), _ for Underscore (1.4.4), and moment for Moment.js (2.0.0 with timezone), crypto, and async (0.2.9). Plus, it has some handy Zapier specific tools on the z object!

Unavailable Objects

Some “common” objects you might expect to find we don’t provide access to include root, child_process, Function, module, process, global, and setInterval (they’ll be undefined at runtime).

Making Outbound Requests (z.request)

The z.request function allows you to make external calls. It performs in a synchronous manner for ease of use, but also provides standard asynchronous features as well if you pass an optional callback.

Usage

Asynchronous: z.request(request, [callback])
Synchronous: var response = z.request()

Options

request <Object>: Takes all options for the NPM request package plus some that allow it to accept what most pre-scripting methods receive as bundle.request:
- request <Object>: Means you can also pass bundle and we’ll extract bundle.request to work with.
- auth <Array> | <Object>: If auth is an Array, it will be transforrmed to {'user':auth[0], 'pass':auth[1]} to match the package’s HTTP Authentication. If your Zapier app is configured to use Basic Auth then bundle.request.auth will be array with 2 elements for the username and password. If it uses Digest Auth then the third element will be false. In this case, when auth[2] is set, we will set auth.sendImmediately to auth[2] and also default jar to true since most digest servers require cookies.
- params <Object>: Will become qs unless that already exists.
- data <string> Will become body unless that already exists. While bundle.request.data will always be a String, be aware that body also accepts a Buffer, ReadStream or - if json is set to true - any JSON-serializable object.
callback Function ([error], response): Will be called on completion, with: - error <Error>: Any error, when applicable. - response <Object>: See Response.

Response

You will not receive the full response but a selection from http.IncomingMessage that matches what most post-scripting methods receive as bundle.response:

status_code <number>: The 3-digit HTTP response status code. E.G. 404.
headers <Array>: Key-value pairs of header names (lower-cased) and values.
content <string>: If http.IncomingMessage.body is a string or Buffer then we’ll wrap it in String().

Errors

When you call z.request() without a callback and an error occurs, it will be thrown. Wrap your call in try/catch block to handle it.

Example

Let’s call http://httpbin.org/get?hello=world with a header to tell it we like JSON:

var request = {
'method': 'GET',
'url': 'http://httpbin.org/get',
'params': {
'hello': 'world'
},
'headers': {
'Accept': 'application/json'
},
};

// Synchronous
var response = z.request(request);
console.log('Status: ' + response.status_code);
console.log('Headers: ' + JSON.stringify(response.headers));
console.log('Content: ' + response.content);

// Asynchronous
z.request(request, function(err, response){

if (err) {
// you can always throw it, we'll catch it, but it
// is better to throw a user-friendly ErrorException
throw err;
}

console.log('Status: ' + response.status_code);
console.log('Headers: ' + JSON.stringify(response.headers));
console.log('Content: ' + response.content);
});

Parsing JSON (z.JSON.parse)

The z.JSON.parse function acts a lot like the native JSON.parse, but adds some helpful logging and error handling.

z.JSON.parse(string), where string is the string representation of a valid JSON object. An error will be thrown if the structure is invalid.

var response = z.request({
method: 'GET',
url: 'https://api.someservice.com/me',
auth: [bundle.auth_fields.api_key, '']
});
var str = response.content;
var obj = z.JSON.parse(str);
// return obj.fields.whatever[0];

Hashing

We support both hashing and HMAC hashing.

// z.hash(algorithm, string, encoding="hex", input_encoding="binary")
var hash = z.hash('sha256', "my awesome string");

// z.hmac(algorithm, key, string, encoding="hex")
var hmac_hash = z.hmac('sha256', 'key', 'string');

// Node.js crypto's library does not officially document using input encodings with hmac, but you can do the following:
var crypto = require('crypto');
crypto.createHmac('sha256', 'key').update('string', 'input_encoding').digest('encoding');

For output encoding (the encoding parameter) we default to hex and also support base64 as a parameter value. For input encoding (the input_encoding parameter) we default to binary and also support utf8 as a parameter value. You should use utf8 if you expect data to be hashed that may include UTF8 characters.

The following hash algorithms are supported:

DSA-SHA1-old, dsa, dsa-sha, dsa-sha1, dsaEncryption, dsaWithSHA, dsaWithSHA1, dss1, ecdsa-with-SHA1, md4, md4WithRSAEncryption, md5, md5WithRSAEncryption, mdc2, mdc2WithRSA, ripemd, ripemd160, ripemd160WithRSA, rmd160, rsa-md4, rsa-md5, rsa-mdc2, rsa-ripemd160, rsa-sha, rsa-sha1, rsa-sha1-2, rsa-sha224, rsa-sha256, rsa-sha384, rsa-sha512, sha, sha1, sha224, sha256, sha384, sha512, ssl2-md5, ssl3-md5, ssl3-sha1, whirlpool

Base 64 Encoding

If you’re looking to turn some text to base64 for something like Basic Auth or otherwise, use this simple function available from Node.js:

var b64data = btoa("this is my string to turn into base64");

Hydration & Dehydration

Dehydration is what we call the creation of a pointer to some data, this is what you’ll normally use to provide data that may not be needed now but could the future.

Hydration is the opposite of dehydration. It is the consumption of a pointer that returns data. Let’s show an example!

var Zap = {
get_contact: function(bundle) {
/\*
Argument:
bundle.auth_fields: <object>
bundle.zap: <object> # info about the zap

            Anything else you might need, like bundle.request.headers, will need to be passed in when you call z.dehydrate()
        */
        var contact = z.JSON.parse(z.request({
            method: 'GET',
            url: 'https://api.fancycrm.com/v1/contacts/' + bundle.contact_id + '.json',
            auth: [bundle.auth_fields.api_key, ''] // you'll need to handle auth
        }).content) || {};
        return contact;
    },
    deal_post_poll: function(bundle) {
        var deals = z.JSON.parse(bundle.response.content);
        return _.map(deals, function(deal) {
            // this delays Zap.get_contact({contact_id: deal.contact_id, auth_fields: bundle_auth_fields})
            deal.contact = z.dehydrate('get_contact', {contact_id: deal.contact_id});
            return deal;
        });
    }

};

In the example above, get_contact will not be called when post_poll is called. Instead, a unique hash is created and stored in place of deal.contact.

There are two scenarios when get_contact will then be called and “hydrated”.

When a user is first setting up their Zap in the UI and accessing fields (because deal.contact may have keys to choose from on itself).
When a user’s Zap tries to send deal.contact out to another app.

Files

Dehydrating Files

Dehydration is what we call the creation of a pointer to data, this is what you’ll normally use in triggers to provide binary data out of band to Zapier. The idea is simple: you don’t want to download all the attachments from all 100 records in a poll - that would take way too long and would be wasteful! So we offer a handy way to create pointers that we can consume “on-demand”.

// you can pass along urls and extra request information

// important: dehydrateFile will not download the file immediately!
// it just creates a pointer that our system understands so it can
// get the file on demand if it is needed

// if you just provide the url, we'll include any standard api
// headers or querystrings you configure for oauth or similar
var url = 'https://example.com/test.txt';
var filePointer = z.dehydrateFile(url);

var filePointer = z.dehydrateFile(
url,

// you can configure the request using the same options
// as z.request, but this makes you responsible for authorization
// and we will not refresh tokens or sessions before hydrating
{
method: 'post',
params: {
custom: 'param'
},
headers: {
'X-Download-Key': 'abcdef1234567890'
}
},

// you can configure the content filename and length
// if you leave it out we'll try to determine it for you
{
name: 'mytextfile.txt',
length: 123
}
);

Hydrating Files

The scripting portion of hydration in actions is incomplete - right now your API will need to adhere to our multipart pattern.

Bundle Details

Prepared request via `bundle.request`

All pre and methods like KEY_write receive a prepared request via bundle.request. This object has the same format as what the pre methods are expected. This means you can modify and return it. It is also the same format that z.request() accepts. This is what you’d do in most KEY_TYPE methods.

url <string>: Configured Polling, Action or Search Endpoint URL. Any variables will be resolved.
method <string>: Will be GET in most cases, but POST for actions (_write), pre_subscribe and pre_unsubscribe.
auth <Array>: Will only be set if the app’s Auth Type is Basic or Digest Auth. The first 2 elements are the username and password. Digest Auth has a third element which is always false.
headers <Object>: If the Auth Type is API Key (Headers) or when it is OAuth V2, OAuth V2 (w/refresh) or Session Auth and you have selected Header or Both for Access Token Placement, then this object will have the required/mapped headers. In addition, we always set Content-Type: application/json; charset=utf-8 and Accept: application/json since data defaults to JSON and we prefer to get that back as well.
params <Object>: Will be mapped into the querystring. If the Auth Type is API Key (Query String) or when it is OAuth V2, OAuth V2 (w/refresh) or Session Auth and you have selected Querystring or Both for Access Token Placement, then this object will have the required/mapped parameters. If you need to convert this to an actual querystring, use $.param(bundle.request.params). Be aware that we do not automatically set params for your Trigger Fields!
data <string>: Will form the body of the request. This will be set to a JSON string for pre_subscribe, pre_unsubscribe and actions (_write) that have one or more fields with Send to Action Endpoint URL in JSON body enabled. To parse a JSON string back to an object use z.JSON.parse(bundle.request.data). To stringify an object use JSON.stringify(your_object).
files <Object>: For actions (_write) that have file-type Action Fields this will be an object with the field keys as keys while the values are an Array of: - [0] <string> Filename or null. - [1] <string> URL to a zapier.com endpoint that will stream the file. - [2] <string> Mimetype or null.

For Static and REST Hooks, KEY_catch_hook also receives bundle.request, but as this is an incoming request it has a different structure. It does not have an url or auth property, params <Object> is querstring <string> and data is called content.

Raw URL via `bundle.url_raw`

The bundle.url_raw is simply the unrendered version of the URL with {% templatetag openvariable %}curlies{% templatetag closevariable %} still intact.

Auth Fields via `bundle.auth_fields`

The bundle.auth_fields is a javascript object that matches the authentication settings provided by the user when the API is connected. For example, if you have an authentication field of api_key and subdomain you can expect:

{
"api_key": "fc5e038d38a57032085441e7fe7010b0",
"subdomain": "example"
}

Rendered Fields via `bundle.trigger_fields` or `bundle.action_fields`

Both bundle.trigger_fields and bundle.action_fields are javascript objects that surface the data given by a user to power a part of a zap. This is after rendering {% templatetag openvariable %}curlies{% templatetag closevariable %}. These follow the trigger fields or action fields) you define. For example, maybe you have a field with a key list_id and name:

{
"list_id": "1234",
"name": "Joe Blow"
}

For actions, this will prune out any fields you chose not to send in the JSON. Use bundle.action_fields_full if you want them included as well.

Raw Fields via `bundle.trigger_fields_raw` or `bundle.action_fields_raw`

Both bundle.trigger_fields_raw or bundle.action_fields_raw are javascript objects that surface the data given by a user to power a part of a zap. This is before rendering {% templatetag openvariable %}curlies{% templatetag closevariable %}. These follow the trigger fields or action fields you define. For example, maybe you have a field with a key list_id:

{
"list_id": "1234",
"name": "{% templatetag openvariable %}first_name{% templatetag closevariable %} {% templatetag openvariable %}last_name{% templatetag closevariable %}"
}

For actions, this will prune out any fields you chose not to send in the JSON.

Trigger Details via `bundle.trigger_data`

This is deprecated and will be going away entirely soon. Instead, use standard action fields which the user maps, to access trigger data.

Webhook Payload via `bundle.cleaned_request`

The bundle.cleaned_request is our best guess at the parsed payload. We do our best to parse JSON, XML and form-encoded data into respective javascript objects. If we cannot parse it correctly - look into bundle.request.content and parse it yourself.

Zap Details via `bundle.zap`

The bundle.zap object contains extra information about the zap (FYI: you may not see this information in debug bundles until the zap is referenced at least once in your script):

{
"name": "My Fancy Zap Title",
"live": false,
"link": "https://zapier.com/app/editor/12345",
"user": {
"timezone": "America/Denver",
},
}

You can access the information like this:

var Zap = {
any_old_pre_poll: function(bundle) {
var zap = bundle.zap;
var message = 'The Zap title is ' + zap.name'!';
// message == "The Zap title is My Fancy Zap Title!"
return bundle.request;
}
}

Extra Request Info via `bundle.meta`

The bundle.meta object contains some runtime information about the Zap which you can use.

{
"frontend": true, // if true, it's being done through the Zap editor/setup
"prefill": false, // if true, this poll is running as a prefill (dynamic dropdown)
// for another poll
"filter": false, // if true, this poll will be filtered afterwards
"hydrate": true, // if true, the results from this poll will be hydrated
"limit": 5, // how many items you should limit the API call to for
// performance reasons. a value of -1 means not limited
"test_poll": false, // if true, means this API call came from the user
// testing their account in the UI
"standard_poll": true, // opposite of bundle.meta.test_poll
"first_poll": false, // if true, means this API call is our initial check for
// items in the API when the Zap is turned on
"page": 0 // which page of API results you should return, useful for
// paging backwards for dynamic dropdowns. It is 0-indexed
// (add 1 via JS if your paging scheme is 1-indexed)
// note this is only available for dynamic dropdowns,
// when bundle.meta.frontend === true
}

You can access the information for limited pagination features like this:

var Zap = {
any_old_pre_poll: function(bundle) {
// adds ?page=0 to URL querystring
bundle.request.params.page = bundle.meta.page
return bundle.request;
}
}

Available Exceptions

In scripting, you have several exception classes at your disposal. Most are used for communicating errors to the user, but a couple do some more interesting bits. See the specifics of each class to find out more.

General Errors

The most rudimentary exception class is the ErrorException. Use it in situations where the user has something misconfigured with their Zap and will need to take action. Typically, this will be for prettifying 4xx responses and API’s that return errors as 200 with a payload that describes the error.

Example: throw new ErrorException('Your error message.');

Note that if a Zap raises too many error messages it will be automatically turned off, so only use these if the scenario is truly an error that needs to be fixed.

Halting Execution

Any method can be interrupted or “halted” (not success, not error, but stopped for some specific reason) with a HaltedException. You might find yourself using this exception in cases where a required pre-condition is not met. For example, in an action to add notes to a contact where contacts are searched for by email address, you would want to throw a HaltedException if a contact was not found. Unlike the ErrorException, a Zap will never be turned off when this exception is raised (even if it is raised more often than not).

Example: throw new HaltedException('Your reason.');

Any pre_XXX call can be interrupted silently with StopRequestException. This will prevent the request from being made and will never cause a user’s Zap to be turned off.

Example: throw new StopRequestException('Your reason.');

Stale Authentication Credentials

For apps that require manual refresh of authorization on a regular basis, we provide a mechanism to notify users of expired credentials. With the ExpiredAuthException, the current call is interrupted, the zap is turned off (to prevent more calls with expired credentials), and a predefined email is sent out informing the user to refresh the credentials.

Example: throw new ExpiredAuthException('Your message.');

For apps that use OAuth, but do not return a typical 401 when tokens expire, you can use the RefreshTokenException in a post_XXX. This will signal Zapier to attempt to refresh the access token and then repeat the failed call.

Example: throw new RefreshTokenException('Your message.');

Updating Session Credentials

For session-based APIs only, stale authorization credentials can be refreshed by throwing the InvalidSessionException. This will tell Zapier to invoke your provided get_session_info() function. Zapier will store these results for you and make them available to every poll and write. We will throw the exception for you if the API responds with a 401 status.

Code Examples

Trigger Pre-Poll Examples

"use strict";

var Zap = {
// STRAIGHT PASS THROUGH
// same as not providing the method at all
// for illustration purposes only
simple_pre_poll: function(bundle) {
return bundle.request;
},

// CHANGE REQUEST METHOD
// for endpoints that don't like the default GET
simple_pre_poll: function(bundle) {
bundle.request.method = 'POST';
return bundle.request;
},

// PLACE A HEADER BASED ON USER INPUT
// a trigger field that should be added as a header but
// if there isn't one, default to "None"
some_header_pre_poll: function(bundle) {
var request = bundle.request;
request.headers["X-Project-ID"] = bundle.trigger_fields.project_id || "None";
return request;
},

// SUBSTITUTE HUMAN FRIENDLY CHOICES
// if you add a trigger field with human friendly choices:
// Yesterday,Today,Tomorrow
// but the querystring should be:
// &when=-1, &when=0, or &when=1
event_pre_poll: function(bundle) {
var request = bundle.request;
switch (bundle.trigger_fields.when) {
case "Yesterday":
request.params.when = -1;
break;
case "Today":
request.params.when = 0;
break;
default:
request.params.when = 1;
}
return request;
},

// BUILD THE URL YOURSELF
// this does exactly what we do when transforming the URL
// from bundle.url*raw to bundle.request.url
// utilizes underscores template system (preloaded with proper syntax)
room_pre_poll: function(bundle) {
var request = bundle.request;
// bundle.url_raw is 'http://{{account_name}}.campfirenow.com/room/{{room_id}}/speak.json'
// bundle.auth_fields is {account_name: 'myaccount', api_key: '1234567890'}
request.url = *.template(bundle.url*raw)(bundle.auth_fields);
// request.url is 'http://myaccount.campfirenow.com/room/{{room_id}}/speak.json'
// bundle.auth_fields is {room_id: 12345, message: 'Hello world!'}
request.url = *.template(request.url)(bundle.trigger_fields);
// request.url is 'http://myaccount.campfirenow.com/room/12345/speak.json'
return request;
}
}

Trigger Post-Poll Examples

"use strict";

var Zap = {
// STRAIGHT PASS THROUGH OF JSON
// same as not providing the method at all
// for illustration purposes only
straight_post_poll: function(bundle) {
// bundle.response.content is '[{"id":1234,"title":"Hello!"}, ... ]'
return z.JSON.parse(bundle.response.content);
},

// WRAP IN ARRAY
// for APIs that return a single object
straight_post_poll: function(bundle) {
// bundle.response.content is '{"id":1234,"title":"Hello!"}'
return [z.JSON.parse(bundle.response.content)];
},

// CENTS INTO DOLLARS
// take a key in cents and offer it up as a dollar formatted string
sale*post_poll: function(bundle) {
// bundle.response.content is '[{"id":1234,"cents":925}, ... ]'
var results = z.JSON.parse(bundle.response.content);
*.each(results, function(result) {
result.dollars = "$" + (Math.floor(result.cents / 100)) + "." + (result.cents % 100);
    })
    // results is '[{"id":1234,"cents":925,"dollars":"$9.25"}, ... ]'
return results;
},

// XML INTO JSON
// given an string of xml data, turn that into JSON:
// <messages type="array">
// <message>
// <id type="integer">2</id>
// <title>Anyone home?</title>
// <body>I can't seem to see anything!</body>
// </message>
// <message>
// <id type="integer">1</id>
// <title>Hello there world!</title>
// <body>I am just tickled to see you!</body>
// </message>
// </messages>
my*xml_doc_post_poll: function(bundle) {
// bundle.response.content is xml string from API, $ is preloaded jQuery
    var xml = $(\$.parseXML(bundle.response.content)).find('message');
// build javascript primitives: array of objects
var results = *.map(xml, function(element){
return {
id: $(element).find('id').text(),
        title: $(element).find('title').text(),
body: \$(element).find('body').text()
};
});
// results is '[{"id":"2","title":"Anyone home?","body":"I can't seem to see anything!"}, ... ]'
return results;
}
}

Catching Webhooks Example

"use strict";

var Zap = {
// STRAIGHT PASS THROUGH OF CLEANED_REQUEST
// same as not providing the method at all
// for illustration purposes only
straight_catch_hook: function(bundle) {
// bundle.cleaned_request is usually an object or array
return bundle.cleaned_request;
},

// PLACE QUERY STRING AS MAIN OBJECT
// in this example our hook is just a GET with a query string
// there is no request content or body, maybe a url like this:
// GET https://zapier.com//hooks/catch/123/n/456789/?name=bryan&age=27
simple_get_catch_hook: function(bundle) {
// bundle.cleaned_request includes the query string already parsed
// but you could parse it yourself from bundle.request.querystring:
var example = \$.param(bundle.request.querystring);

    // but let's just return the cleaned_request version:
    return bundle.cleaned_request.querystring; // {"name":"bryan","age":27}

},

// MOVE LIST ON SUBKEY TO MAIN OBJECT
// if a json POST contains a list on a root object's key "data"
// we can move the list to the parent to trigger for each item
// the content/body might look like:
// {"data":[{"name":"bryan","age":27},{"name":"mike","age":23}]}
myjson_catch_hook: function(bundle) {
// bundle.cleaned_request includes the json already parsed
// but you could parse it yourself from bundle.request.content:
var example = z.JSON.parse(bundle.request.content).data;

    // but let's just return the cleaned_request version:
    return bundle.cleaned_request.data; // the array

}

// FILTER OUT CERTAIN STATIC WEBHOOKS
// if your hooks are noisy, then you may want to filter based on
// some static value, or even user provided trigger fields
filter_out_catch_hook: function(bundle) {
// manually create json from the posted string
var json = z.JSON.parse(bundle.request.content);

    // filter out hooks that aren't the event type we care about
    if (json.event_type != 'new_comment') {
      return []; // return [] or {} to take no action
    }

    // filter out hooks that aren't the status that the user expected
    if (bundle.trigger_fields.status && json.status != bundle.trigger_fields.status) {
      return []; // return [] or {} to take no action
    }

    // else
    return json;

},
}

Action Pre-Write Examples

"use strict";

var Zap = {
// STRAIGHT PASS THROUGH
// same as not providing the method at all
// for illustration purposes only
pass_through_pre_write: function(bundle) {
return bundle.request;
},

// WRAP FIELDS IN TOP-LEVEL ARRAY UNDER DATA KEY
wrap_in_array_pre_write: function(bundle) {
bundle.request.data = JSON.stringify({data: [bundle.action_fields]})
return bundle.request;
},

// DO NOT UNFLATTEN **
// by default we will turn fields like {custom**c: 12}
// into {custom: {c: 12}}, but this can avoid this by
// using the "full" action fields, like this
dont_unwrap_pre_write: function(bundle) {
bundle.request.data = JSON.stringify(bundle.action_fields_full);
return bundle.request;
},

// LIMIT STRING LENGTH
// a field called message cannot be longer than 256 characters
message_pre_write: function(bundle) {
var outbound = z.JSON.parse(bundle.request.data);
outbound.message = outbound.message.substring(0, 256);
bundle.request.data = JSON.stringify(outbound);
return bundle.request;
},

// GENERATE XML FOR POSTING
// you'll have access to your action fields
// we'd normally POST as JSON, but this shows how to do XML
xml_doc_pre_write: function(bundle) {
// root el is ignored in .html()
var xml = $("<XMLDocument><message/></XMLDocument>");
    // bundle.action_fields is {title: "Anyone home?", body: "I can't seem to see anything!"}
    Object.keys(bundle.action_fields).forEach(function(key){
      $(xml.find("message")).append(\$("<" + key + " />").text(bundle.action_fields[key]));
})
// '<message><title>Anyone home?</title><body>I can't seem to see anything!</body></message>'
bundle.request.data = xml.html();
// set the headers
bundle.request.headers['Content-Type'] = "application/xml; charset=utf-8";
bundle.request.headers['Accept'] = "application/xml";
return bundle.request;
},

// FORM ENCODE INSTEAD OF JSON
// sometimes you don't want to JSON encode, so this example shows how
// to form encode POST data instead (just like a form submission)
my_form_pre_write: function(bundle) {
// build a querystring from the object with all fields
bundle.request.data = \$.param(bundle.action_fields_full);
// correct the content type header
bundle.request.headers['Content-Type'] = 'application/x-www-form-urlencoded';
return bundle.request;
}
}

Search Post-Write Examples

Sometimes, a search endpoint will return a successful response despite the search being unsuccessful. To account for this, you need to manipulate the response in a _post_search method:

// let's say the response content looks like this:
// {
// "search_results": {},
// "time": "2018-04-01T01:02:03.456-00:00"
// }
// by default, our system will interpret this as a successful search
// and return the "search_results" and "time" keys -- what we really
// want is the content nested under that search_results key (which in
// this example is an empty object, because there was no search match)

var Zap = {
my_search_key_post_search: function(bundle) {
var response = z.JSON.parse(bundle.response.content);
return response.search_results;
}
}

REST Hook Subscription Examples

var Zap = {
pre_subscribe: function(bundle) {
bundle.request.method = 'POST';
bundle.request.headers['Content-Type'] = 'application/x-www-form-urlencoded';
bundle.request.data = \$.param({
url: bundle.target_url,
list_id: bundle.trigger_fields.list_id, // from trigger field
append_data: 1
});
return bundle.request;
},
post_subscribe: function(bundle) {
// must return a json serializable object for use in pre_unsubscribe
var data = z.JSON.parse(bundle.response.content);
// we need this in order to build the {% templatetag openvariable %}webhook_id{% templatetag closevariable %}
// in the rest hook unsubscribe url
return {webhook_id: data.id};
},
pre_unsubscribe: function(bundle) {
bundle.request.method = 'DELETE';
// bundle.subscribe_data is from return data in post_subscribe method
bundle.request.url = 'https://example.com/x.php?id=' + bundle.subscribe_data.webhook_id;
bundle.request.data = null;
return bundle.request;
},
};

Adding Trigger Fields to Subscription Payload

var Zap = {

pre_subscribe: function (bundle) {
if (Object.keys(bundle.trigger_fields).length) {
var data = z.JSON.parse(bundle.request.data);
var dataWithFields = Object.assign({}, data, bundle.trigger_fields);
bundle.request.data = JSON.stringify(dataWithFields);
}
return bundle.request;
}

};

Session Auth Examples

var Zap = {
get_session_info: function(bundle) {
var api_key,
api_key_request_payload,
api_key_response;

    // Assemble the meta data for our key swap request
    api_key_request_payload = {
        method: 'POST',
        url: 'https://api.domain-name.com/api/login',
        params: bundle.auth_fields,
        headers: {
            'Content-Type': 'application/json',  // Could be anything.
            Accept: 'application/json'
        }
    };

    // Fire off the key exchange request.
    api_key_response = z.request(api_key_request_payload);

    // Extract the `api_key` from returned JSON.
    api_key = z.JSON.parse(api_key_response.content).api_key;

    // This structure is an example. You may need to add
    // a different key name, or multiple keys, depending
    // on your API's requirements.
    // This will be mixed into bundle.auth_fields in future calls.
    return {'api_key': api_key};

},

new_contact_post_poll: function(bundle) {

    // We will catch bundle.response.status_code === 401
    // If your API doesn't conform to this standard, you can handle it yourself:
    if (z.JSON.parse(bundle.response.content).code === 401) {
      throw new InvalidSessionException(); // Call get_session_info() and try the request again
    }

    return z.JSON.parse(bundle.response.content);

}
};

Debugging

For CLI app debugging see here.

By far the easiest way to debug is to use the Monitor to track requests (which includes a rudimentary JavaScript Exception catcher). We also have a Bundle Logs option. You can access both from the scripting platform:

how to get to console/http logs

The ability to log to a console that you can view live. Similar to your browser, logging something is simple as:

console.log('hello world!');
console.log({id: 1234, name: 'Bob Smith'});

And then, from the Code Editor you can open the bundle log console and watch logs come in live:

console logging

Unlike your browser, if your function generates an error after console.log(...), it will not show up in the console.

To mitigate the possibility of an error after console.log(...), you should return early. Keep in mind, you need to return an object of the expected format for that function type.

Zap = {
TRIGGERKEY_pre_poll: function(bundle) {
console.log('my error');
return bundle.request; // expected return format for pre poll functions
}

TRIGGERKEY_post_poll: function(bundle) {
console.log('my error');
return []; // expected return format for post poll functions
}
}

Common Issues

Error: Scripting payload too large

Your app runs on AWS Lambda, which has a throughput limit of 6MB. The total size of your scripting code and the data received and returned by a method cannot exceed that limit. If you’re seeing this error, the most likely cause is the amount of data being returned from a X_post_poll method. To solve, try transforming the raw response to return only the relevant fields or return a subset of items (only the most recent 50, for instance). Some APIs also support asking for certain fields instead of everything, which can cut down bundle size.

Python Artifacts

When doing a POST request in a write action, you may see Python unicode artifacts in your payload. For example:

[{u'lastName': u'Wayne', u'firstName': u'Bruce'}]

This mean you’re passing an object to bundle.request.data, which expects a string. Call JSON.stringify on your data object in the ACTION_KEY_pre_write method.

Editor Keyboard Shortcuts

Below is a list of available keyboard shortcuts you can use while in the Scripting Editor:

Select All Ctrl-A (PC) Cmd-A (Mac)

Select the whole content of the editor.

Save Ctrl-S (PC) Cmd-S (Mac)

Saves the current content of the editor.

Undo Ctrl-Z (PC) Cmd-Z (Mac)

Undo the last change.

Redo Ctrl-Y (PC) Cmd-Y (Mac)

Redo the last undone change.

Undo Selection Ctrl-U (PC) Cmd-U (Mac)

Undo the last change to the selection, or if there are no selection-only changes at the top of the history, undo the last change.

Redo Selection Alt-U (PC) Shift-Cmd-U (Mac)

Redo the last change to the selection, or the last text change if no selection changes remain.

Movement

Jump to Doc Start Ctrl-Up (PC), Cmd-Up (Mac)

Move the cursor to the start of the document.

Jump to Doc End Ctrl-Down (PC) Cmd-Down (Mac)

Move the cursor to the end of the document.

Jump to Start of Line Alt-Left (PC) Cmd-Left (Mac)

Move the cursor to the start of the line.

Jump to Start of Line Smart Home

Move to the start of the text on the line, or if we are already there, to the actual start of the line (including whitespace).

Jump to Line End Alt-Right (PC) Cmd-Right (Mac)

Move the cursor to the end of the line.

Move Left a Group Ctrl-Left (PC), Alt-Left (Mac)

Move to the left of the group before the cursor. A group is a stretch of word characters, a stretch of punctuation characters, a newline, or a stretch of more than one whitespace character.

Move Right a Group Ctrl-Right (PC) Alt-Right (Mac)

Move to the right of the group after the cursor (see above).

Search

Find Ctrl-F (PC) Cmd-F (Mac)

Typical search, with the added bonus of being able to do regular expressions.

Find Next Ctrl-G (PC) Cmd-G (Mac)

After you perform a search, use to jump to the next match.

Find Previous Shift-Ctrl-G (PC) Shift-Cmd-G (Mac)

After you perform a search, use to jump to the previous match.

Replace Shift-Ctrl-F (PC) Cmd-Alt-F (Mac)

Perform a replace. Use the buttons to move through the matches.

Replace All Shift-Ctrl-R (PC) Shift-Cmd-Alt-F (Mac)

Perform a replace on every match (no confirmation).

Delete

Kill Line Ctrl-K (Mac only)

Emacs-style line killing. Deletes the part of the line after the cursor. If that consists only of whitespace, the newline at the end of the line is also deleted.

Delete Line Ctrl-D (PC) Cmd-D (Mac)

Deletes the whole line under the cursor, including newline at the end.

Delete Group Before Ctrl-Backspace (PC) Alt-Backspace (Mac)

Delete to the left of the group before the cursor.

Delete Group After Ctrl-Delete (PC) Alt-Delete (Mac)

Delete to the start of the group after the cursor.

Indent

Auto Indent Shift-Tab

Auto-indent the current line or selection.

Indent More Ctrl-] (PC) Cmd-] (Mac)

Indent the current line or selection by one indent unit.

Indent Less Ctrl-[ (PC) Cmd-[ (Mac)

Dedent the current line or selection by one indent unit.

Need help? Tell us about your problem and we’ll connect you with the right resource or contact support.

Scripting in Legacy Web Builder

Limits and Considerations

Available Methods

Trigger Methods

Polling

KEY_pre_poll

KEY_post_poll

KEY_poll

Static and REST Hooks

KEY_catch_hook

REST Hooks and Notification REST Hooks

pre_subscribe

post_subscribe

pre_unsubscribe

Notification REST Hooks

KEY_pre_hook

KEY_post_hook

Available to all triggers

KEY_pre_custom_trigger_fields

KEY_post_custom_trigger_fields

Action Methods

KEY_pre_write

KEY_post_write

KEY_write

KEY_pre_custom_action_fields

KEY_post_custom_action_fields

KEY_custom_action_fields

KEY_custom_action_result_fields

KEY_pre_custom_action_result_fields

KEY_post_custom_action_result_fields

Search Methods

KEY_pre_search

KEY_post_search

KEY_search

KEY_pre_custom_search_fields

KEY_post_custom_search_fields

KEY_custom_search_fields

KEY_custom_search_result_fields

KEY_pre_custom_search_result_fields

KEY_post_custom_result_search_fields

KEY_pre_read_resource

KEY_post_read_resource

KEY_read_resource

Authentication Methods

pre_oauthv2_token

post_oauthv2_token

pre_oauthv2_refresh

get_session_info

get_connection_label

Built-in Functions and Tools

Available Libraries

Unavailable Objects

Making Outbound Requests (z.request)

Usage

Options

Response

Errors

Example

Parsing JSON (z.JSON.parse)

Hashing

Base 64 Encoding

Hydration & Dehydration

Files

Dehydrating Files

Hydrating Files

Bundle Details

Prepared request via bundle.request

Raw URL via bundle.url_raw

Auth Fields via bundle.auth_fields

Rendered Fields via bundle.trigger_fields or bundle.action_fields

Raw Fields via bundle.trigger_fields_raw or bundle.action_fields_raw

Trigger Details via bundle.trigger_data

Webhook Payload via bundle.cleaned_request

Zap Details via bundle.zap

Extra Request Info via bundle.meta

Available Exceptions

General Errors

Halting Execution

Stale Authentication Credentials

Updating Session Credentials

`KEY_pre_poll`

`KEY_post_poll`

`KEY_poll`

`KEY_catch_hook`

`pre_subscribe`

`post_subscribe`

`pre_unsubscribe`

`KEY_pre_hook`

`KEY_post_hook`

`KEY_pre_custom_trigger_fields`

`KEY_post_custom_trigger_fields`

`KEY_pre_write`

`KEY_post_write`

`KEY_write`

`KEY_pre_custom_action_fields`

`KEY_post_custom_action_fields`

`KEY_custom_action_fields`

`KEY_custom_action_result_fields`

`KEY_pre_custom_action_result_fields`

`KEY_post_custom_action_result_fields`

`KEY_pre_search`

`KEY_post_search`

`KEY_search`

`KEY_pre_custom_search_fields`

`KEY_post_custom_search_fields`

`KEY_custom_search_fields`

`KEY_custom_search_result_fields`

`KEY_pre_custom_search_result_fields`

`KEY_post_custom_result_search_fields`

`KEY_pre_read_resource`

`KEY_post_read_resource`

`KEY_read_resource`

`pre_oauthv2_token`

`post_oauthv2_token`

`pre_oauthv2_refresh`

`get_session_info`

`get_connection_label`

Prepared request via `bundle.request`

Raw URL via `bundle.url_raw`

Auth Fields via `bundle.auth_fields`

Rendered Fields via `bundle.trigger_fields` or `bundle.action_fields`

Raw Fields via `bundle.trigger_fields_raw` or `bundle.action_fields_raw`

Trigger Details via `bundle.trigger_data`

Webhook Payload via `bundle.cleaned_request`

Zap Details via `bundle.zap`

Extra Request Info via `bundle.meta`
